BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

Model Number : OWP-BL43-300

Brand Name : Bextremeshell

Place of Origin : Jiangsu, China

MOQ : 1

Price : $169-176

Voltage : 24VDC

Rated power : 250W

Rated flow rate : 6000L/H @ H=8M

Max flow : 9000L/H

Max lift head : 11M

Medium temperature : -40℃ to +85℃

Nozzle diameter : 38mm

Speed control : Fixed speed

IP grade : IP68

Service life : >20000hours

Weight : 2.2Kg

Cable length : 560mm

Horsepower : 0.33

Outlet size : 38mm

Motor type : DC Brushless Motor

Contact Now

Pump Major Parameters
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Model No.:OWP-BL43-300
Power Input：24VDC
Rated power：250W
Rated Flow rate ：6000L/H @ H=8M
Max Flow：9000L/H
Max Lift Head：11M
---------------------------------------------------------------------------
Medium: glycol(50-60%)+water, dielectric oil，Electronic fluorinated solution
Medium temperature:
Working long hours guaranteed
-40℃ to +85℃ (-40°F to + 185°F)
Nozzle diameter：38mm
Speed Control：Fixed speed
Fault Feedback signal：No
IP Grade：IP68
Service life：＞20000hours
Weight:2.2Kg
Pump Applications
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
EV motor cooling
EV motor controller cooling
Turbocharger intercooler pump
EV battery thermal management
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

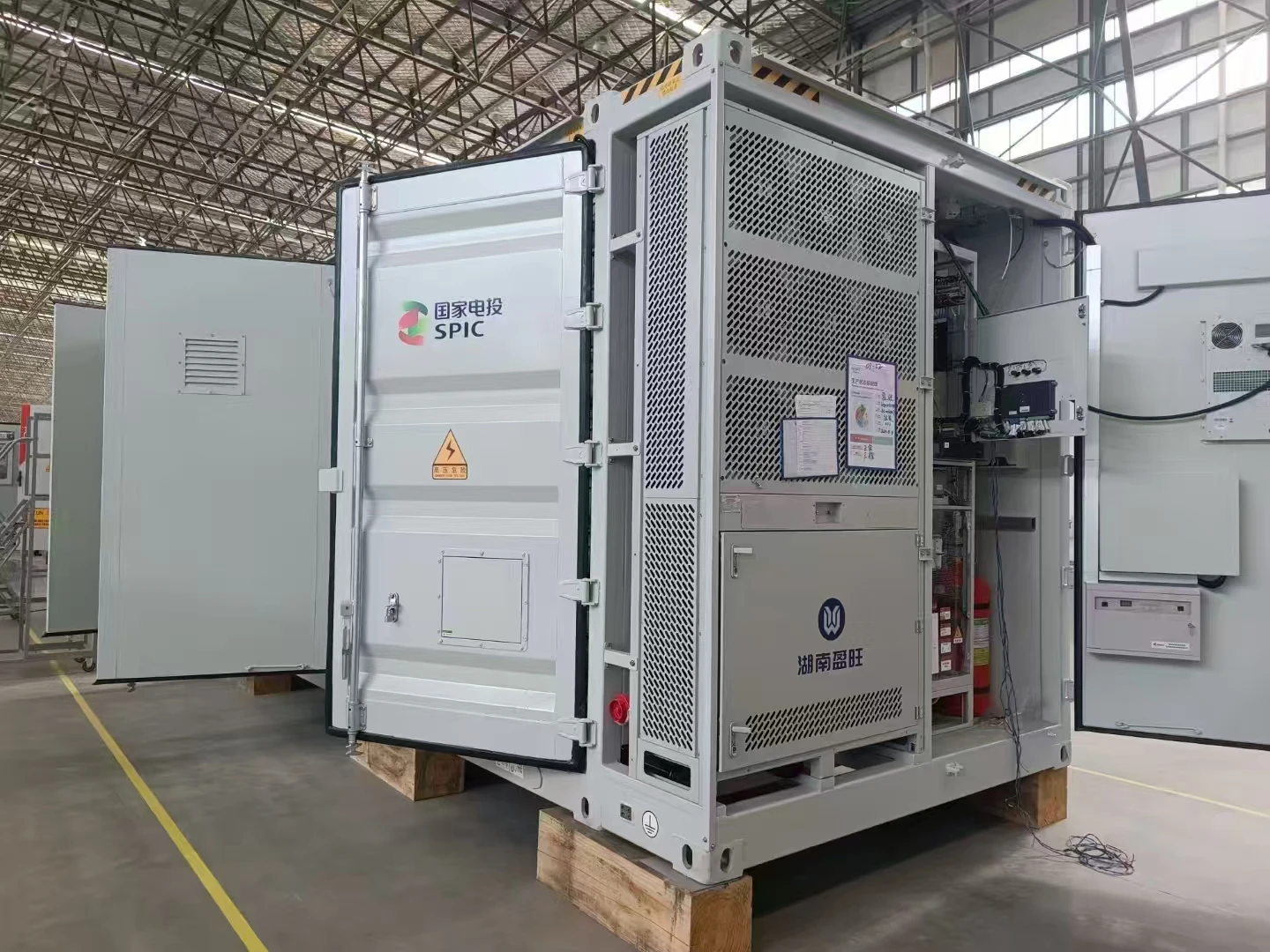

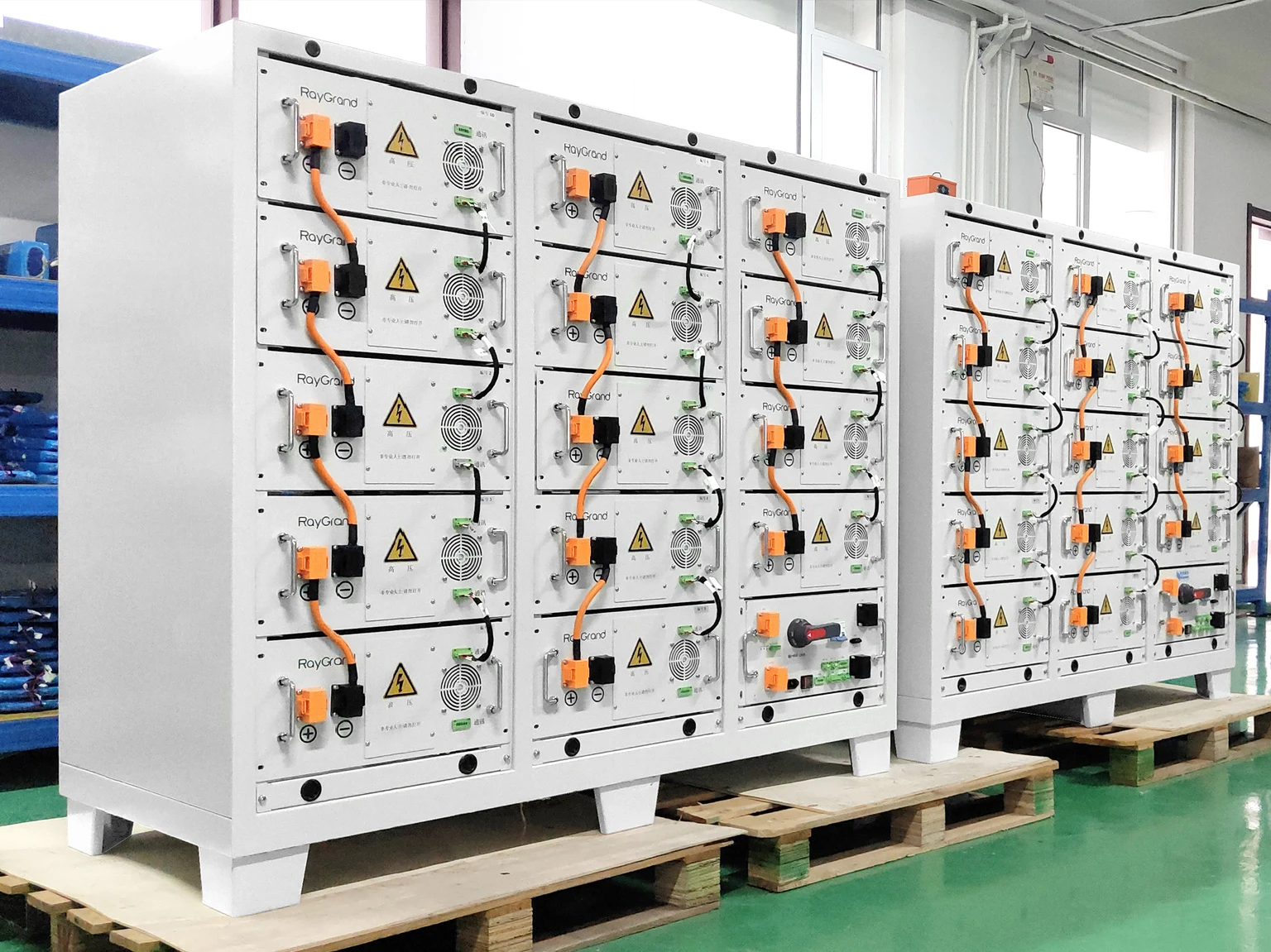

Battery energy storage cooling
Fuel cell cooling
large-scale GPU cooling

BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Industrial cooling system
Immersion cooling
Communication base station cooling

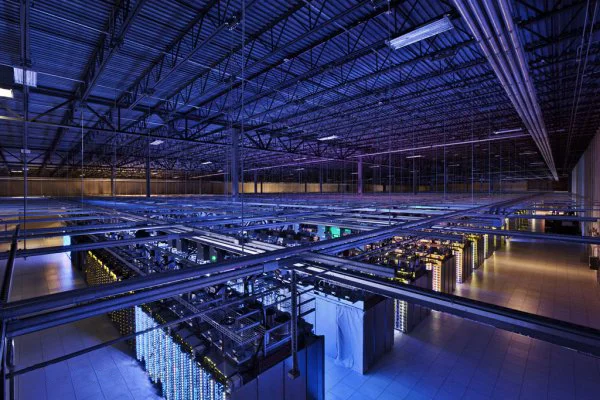

Supercomputer cooling
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Electricized engineering vehicles IT fluid cooling solutions Battery thermal manage

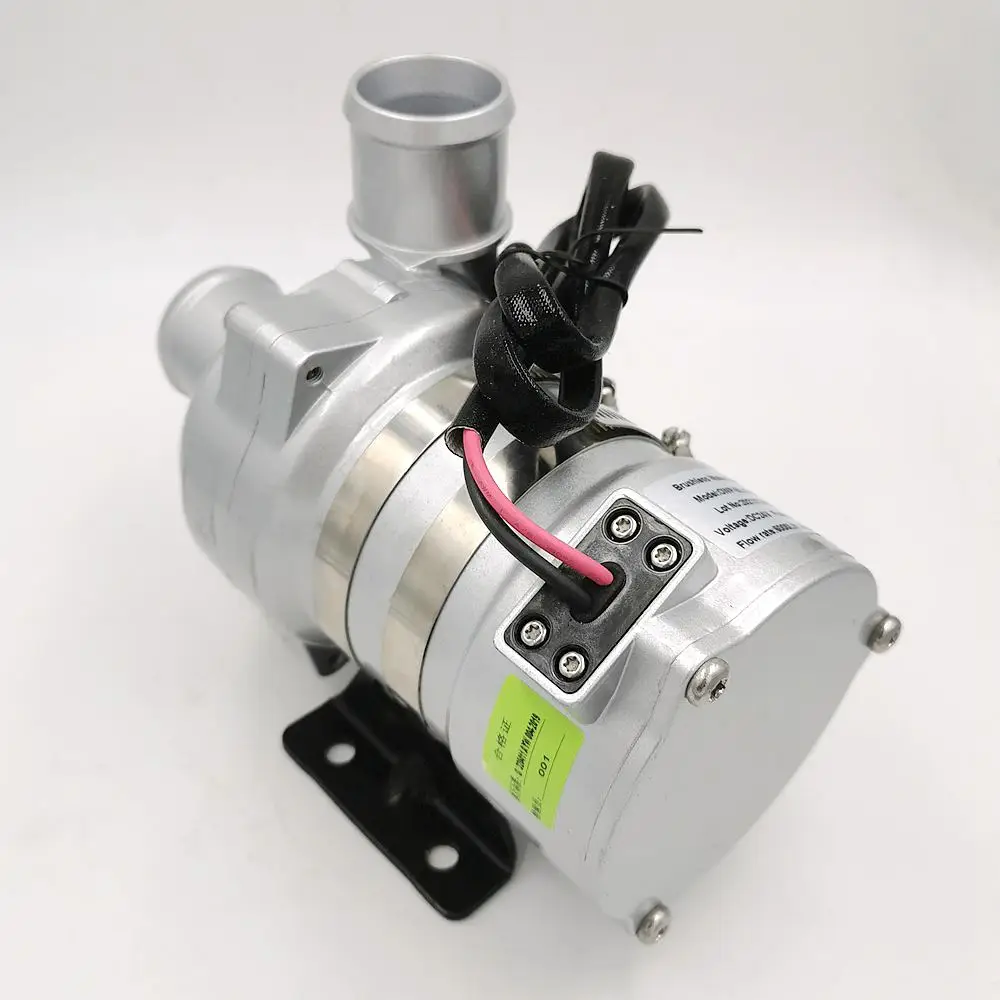

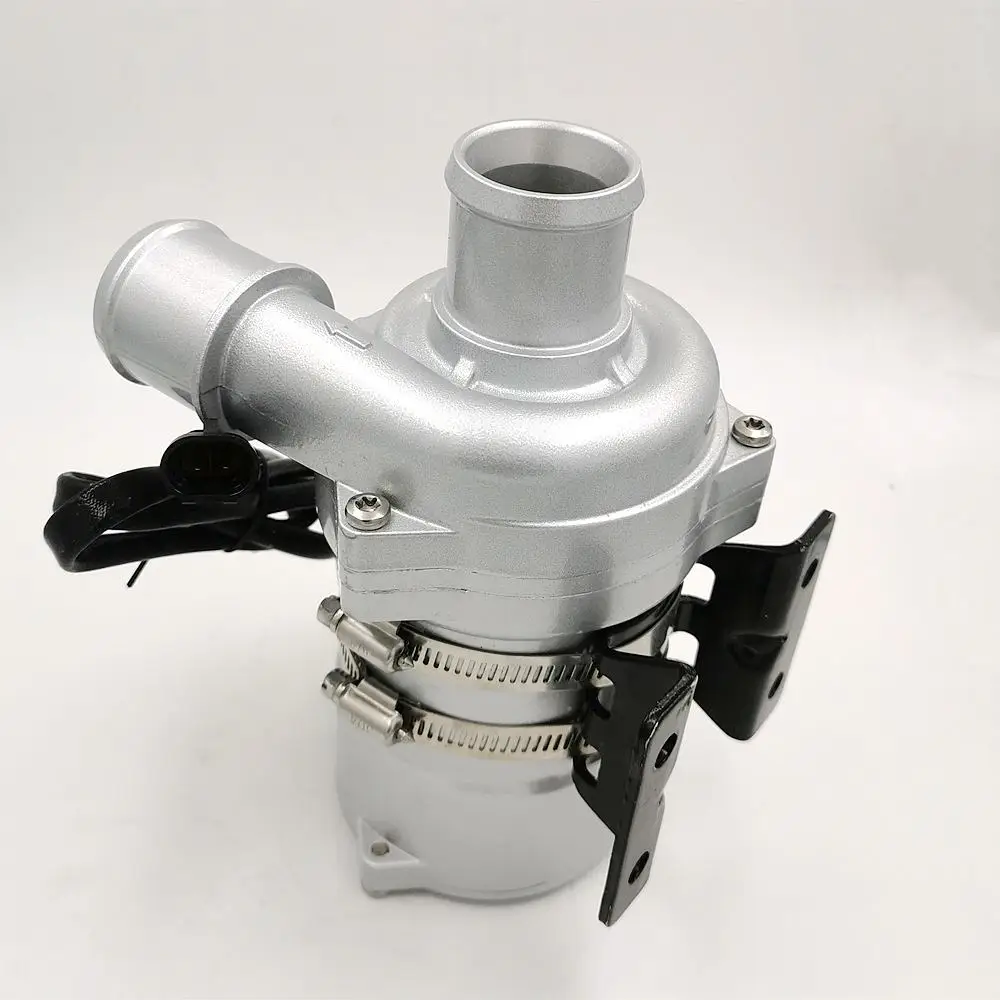

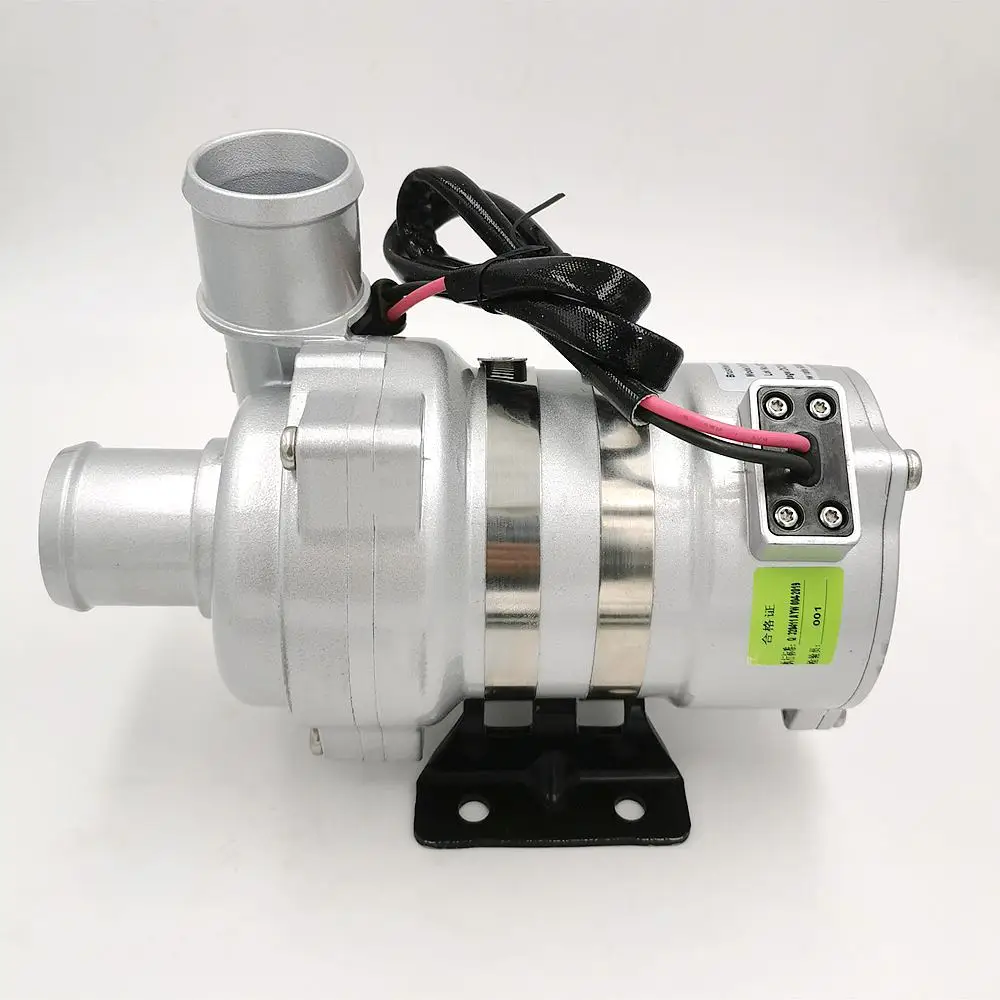

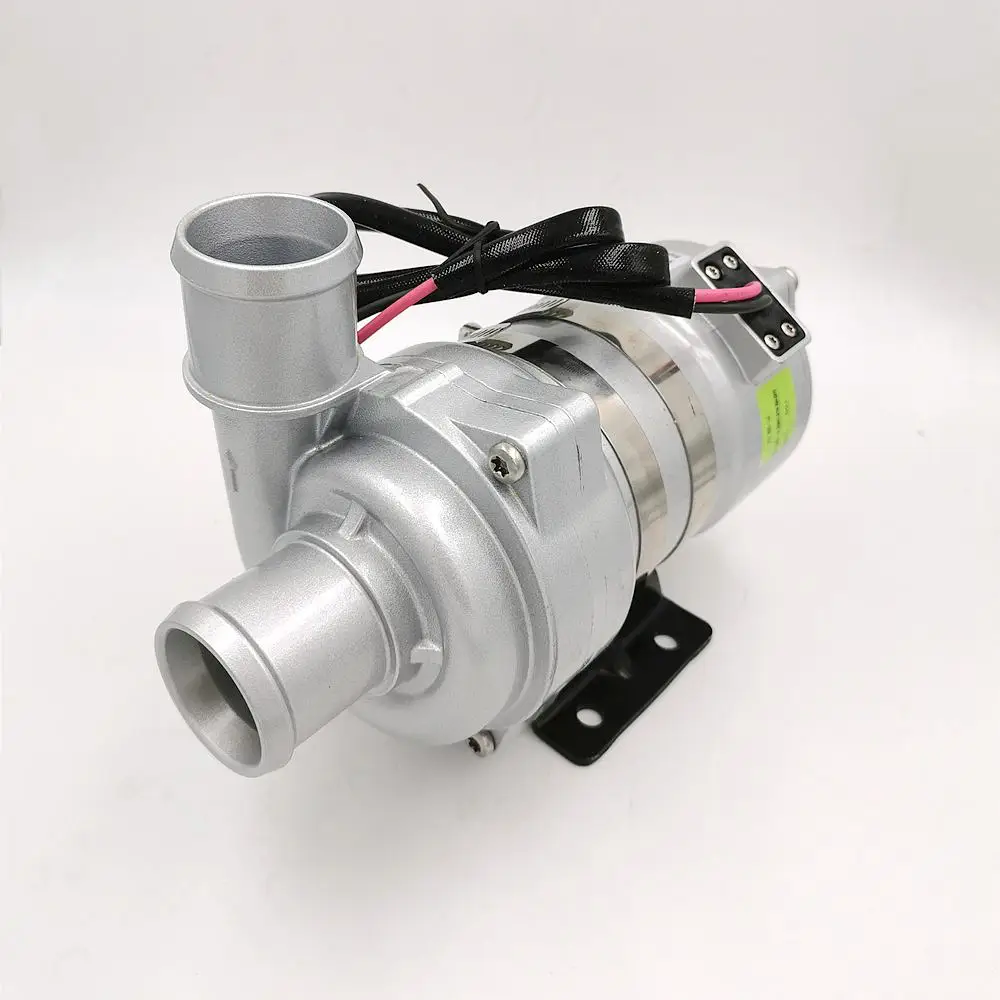

Pump Appearance
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Our clients come from 36 countires with high reputation in their fields.

Pump Advantages
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

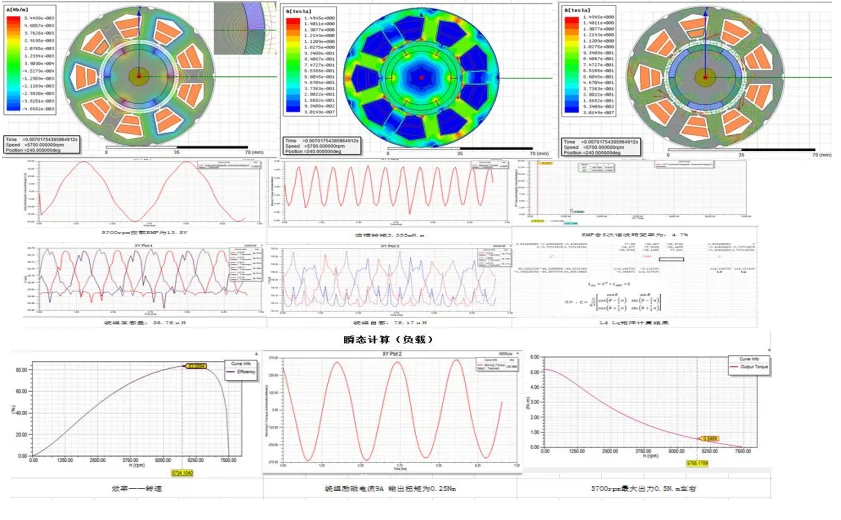

Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

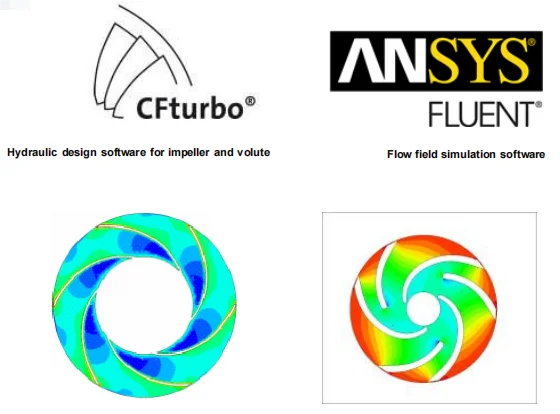

Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

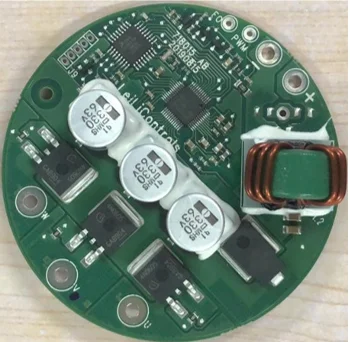

Automotive grade electronic components makes our pump withstand extreme harsh operating environment
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Software&Tools applied:
CFturbo/ANSYS FLUENT/Compile/Link/Debug/Simulate/Emulate/Program /SlikEdit, TestLink Software guidelines:Code Check；SVN:SW version control system (PVCS)；Test plan/tests (white box, black box)；Internal audit & release
Pump Technical parameter
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Features
◆Single-stage Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.
◆With wide range operating temperature
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection

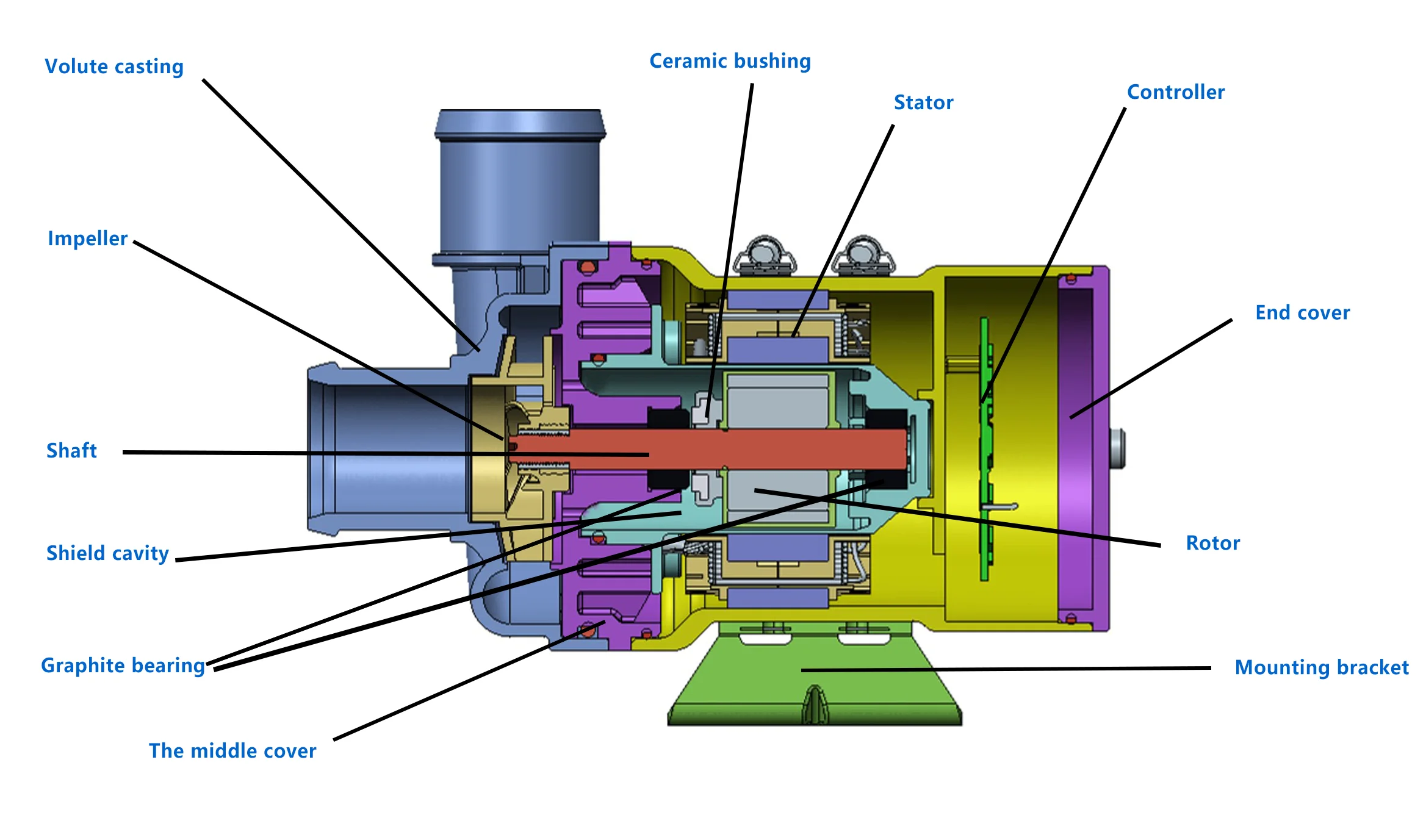

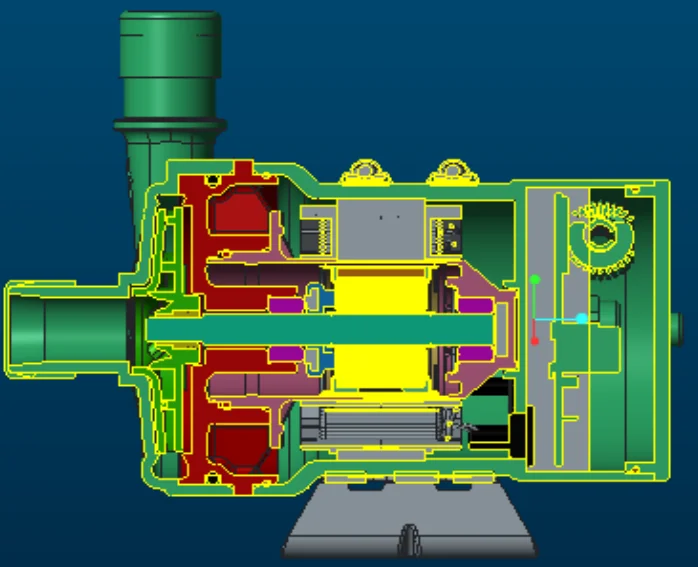

Driving device (Including motor)
◆Driving electromagnet: nylon plastic capsulated magnet
◆Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
◆Motor winding frame :PPA GF
◆Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment
◆Bracket: Steel with powder coating
◆Bracket hoop: US 304 stainless steel+ Damping rubber ring
◆Waterproof based on IP68 rating (en60529)
◆Connector model:AMP282104-1(matched Plug AMP282080-1)
◆Nozzle diameter:38mm/1.5inch
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

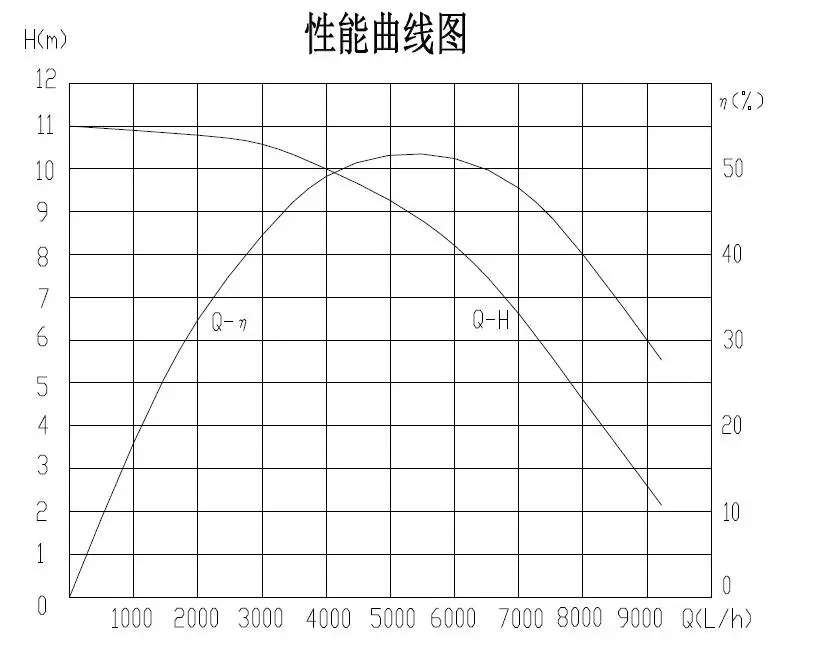

Performance
■Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature： -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the
service life)
■ System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

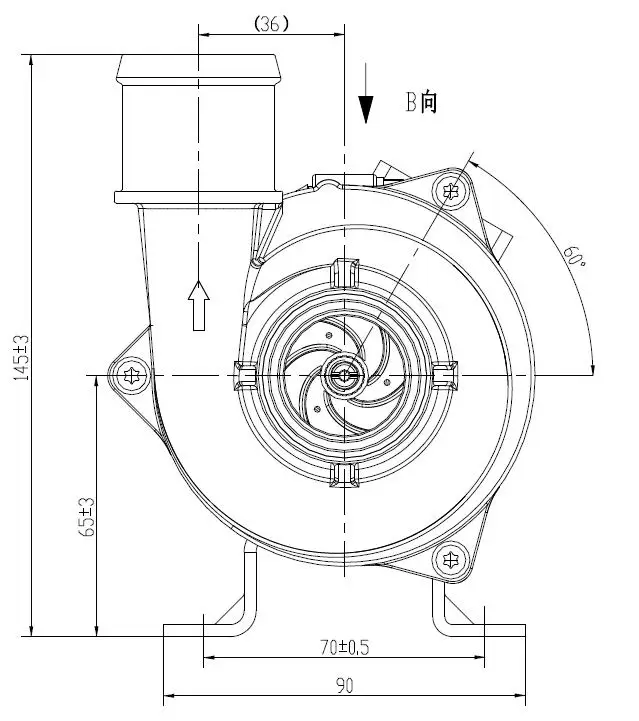

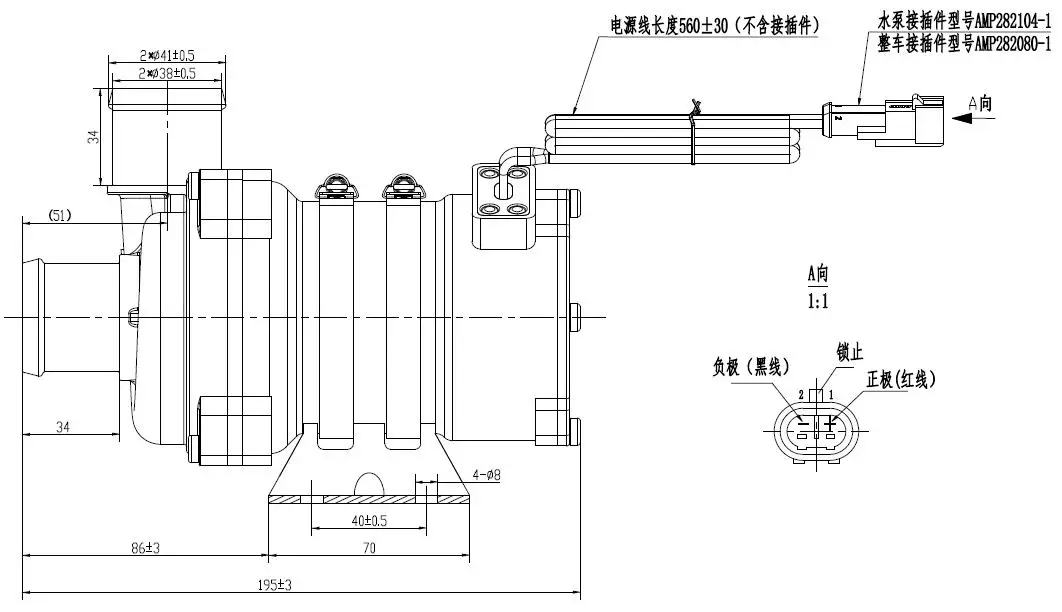

Pump overall size
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Manufacturing Technique

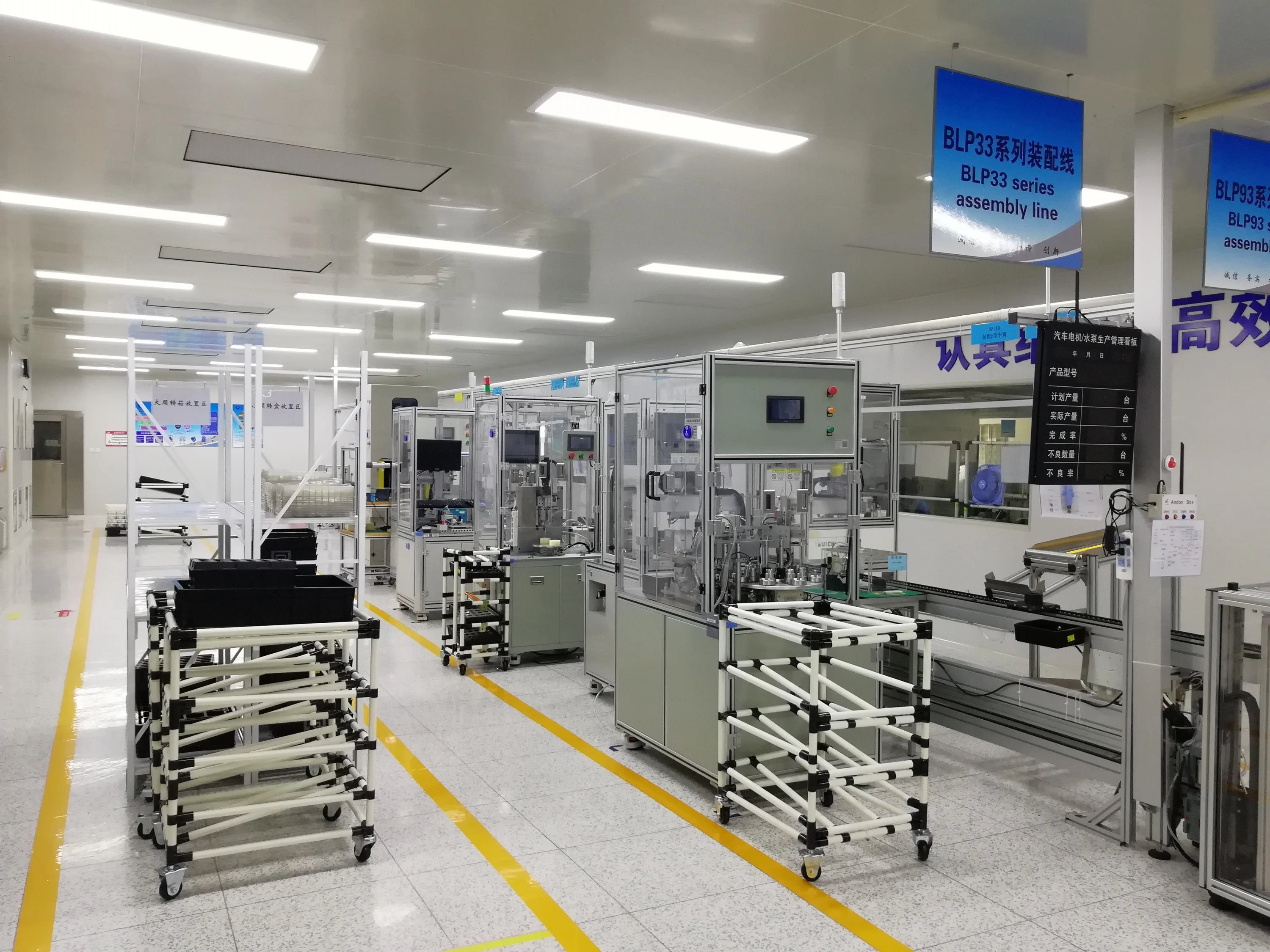

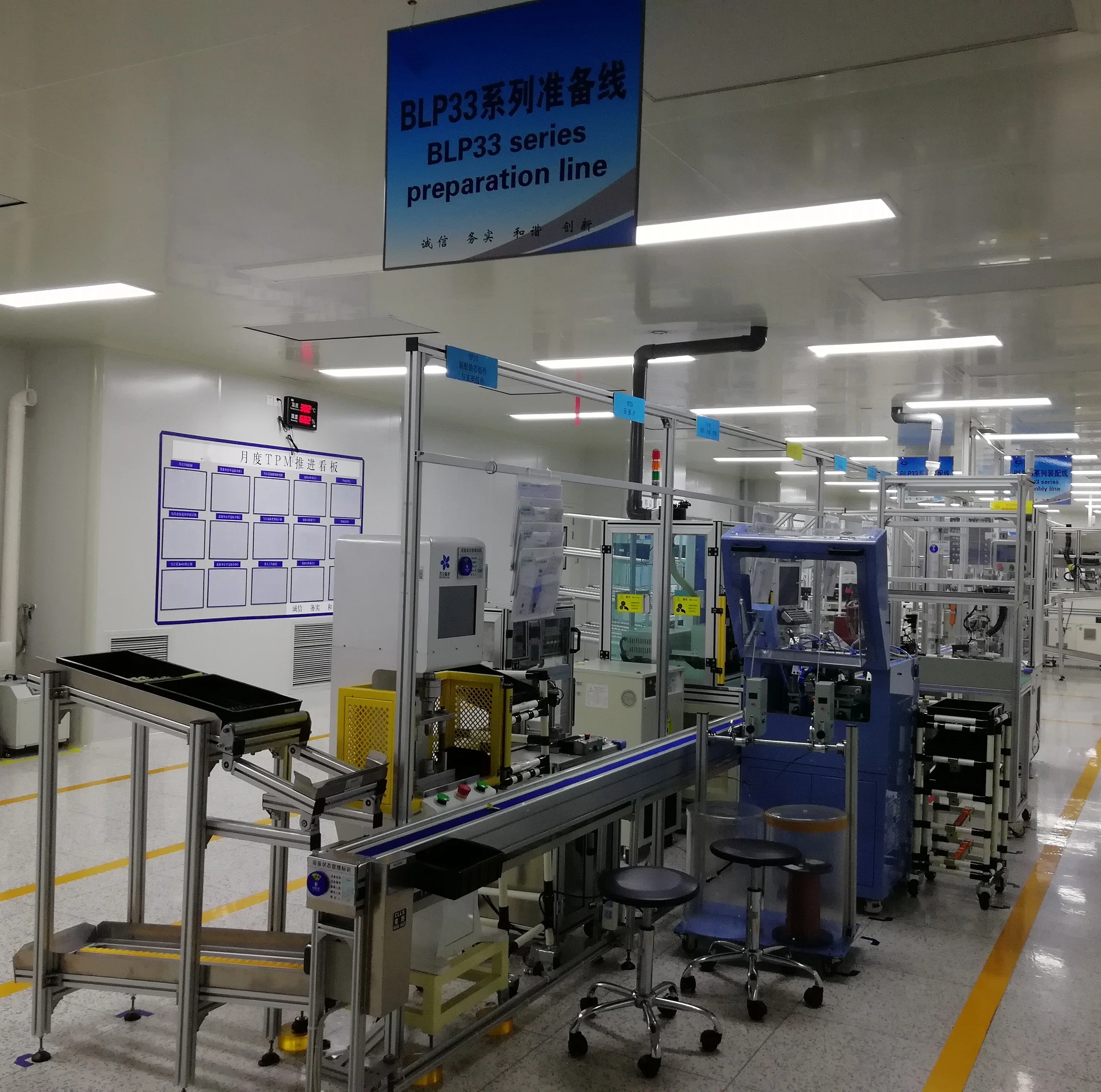

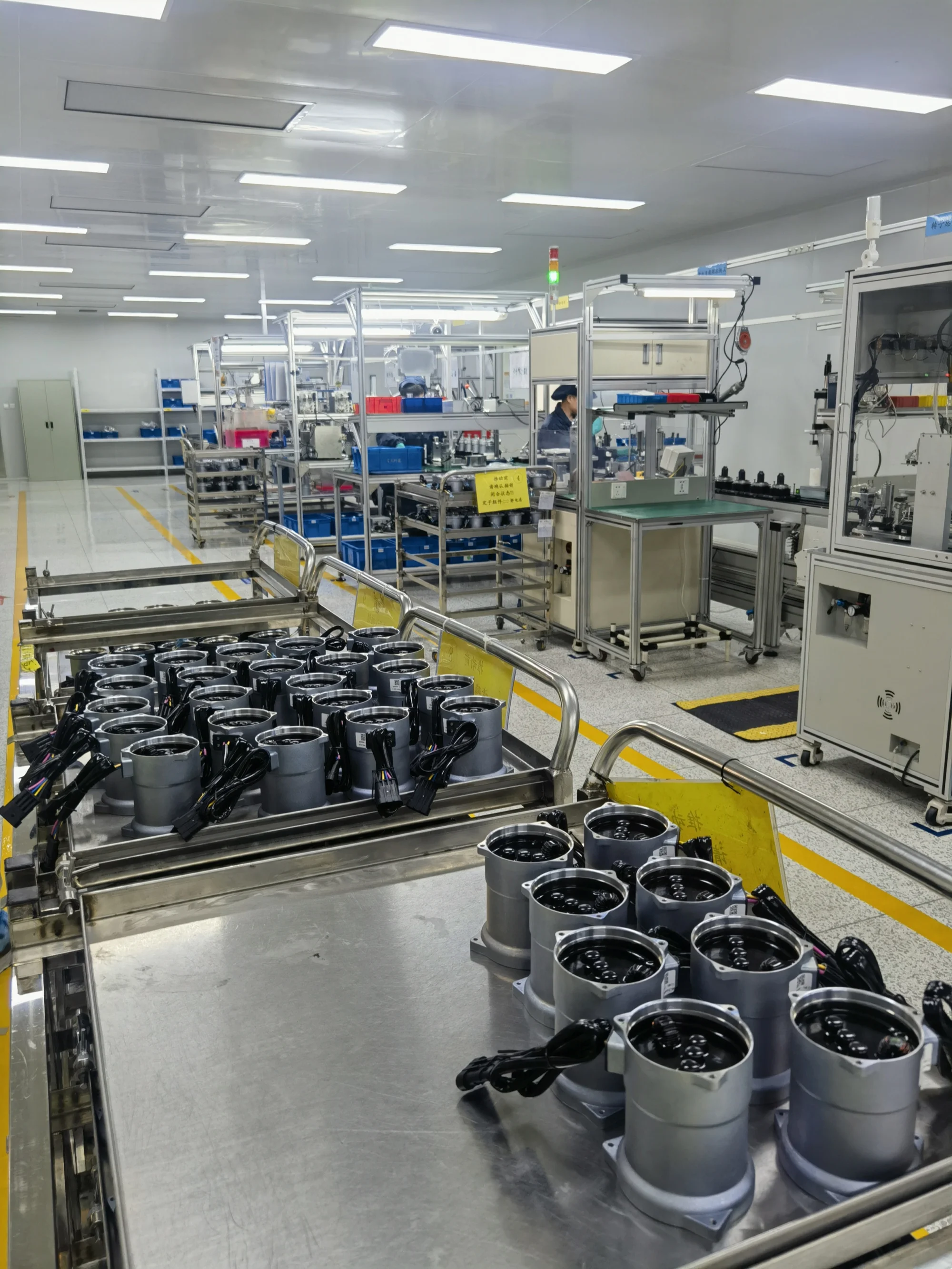

we have 5 semi-automatic pump production lines in dust-free workshops
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

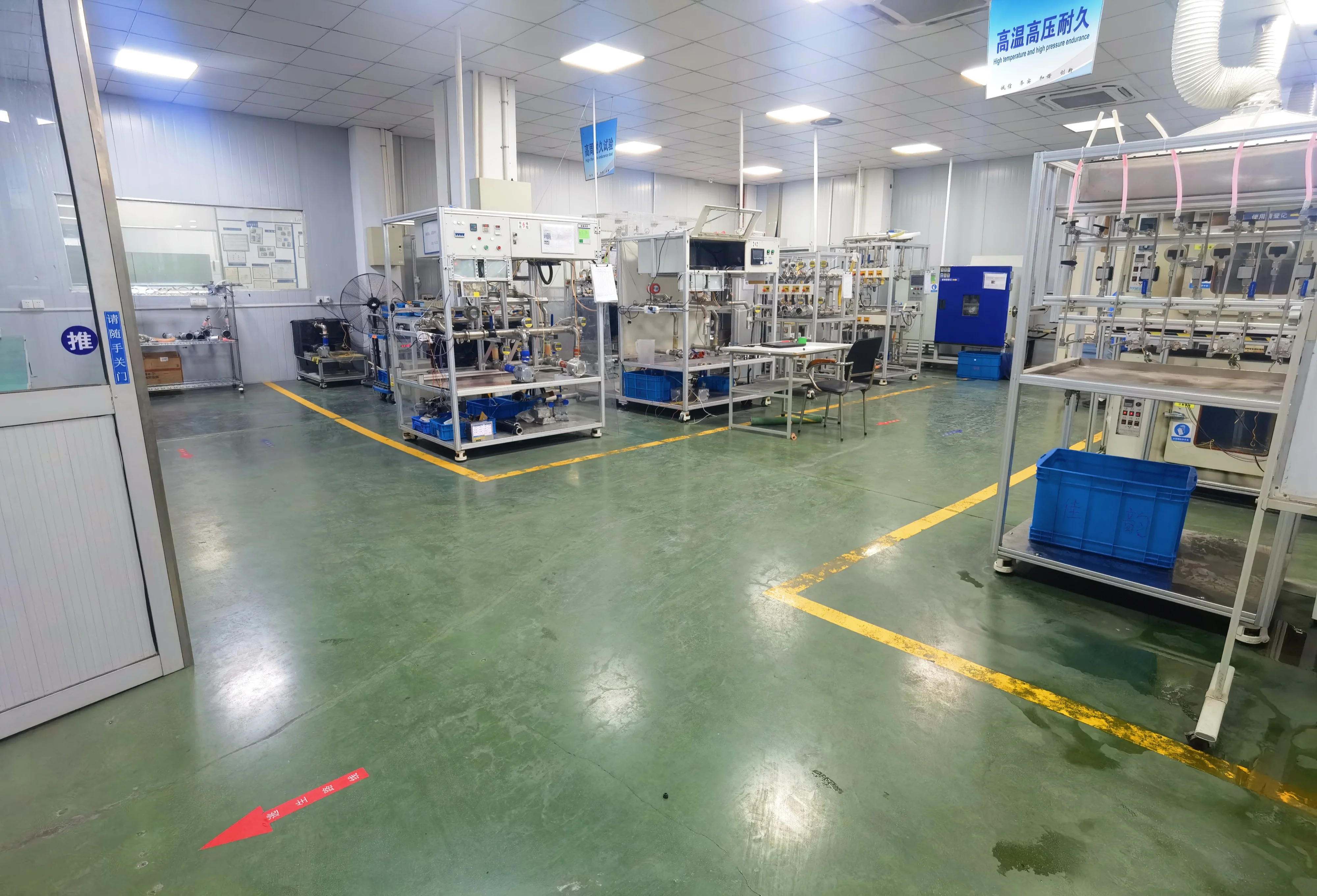

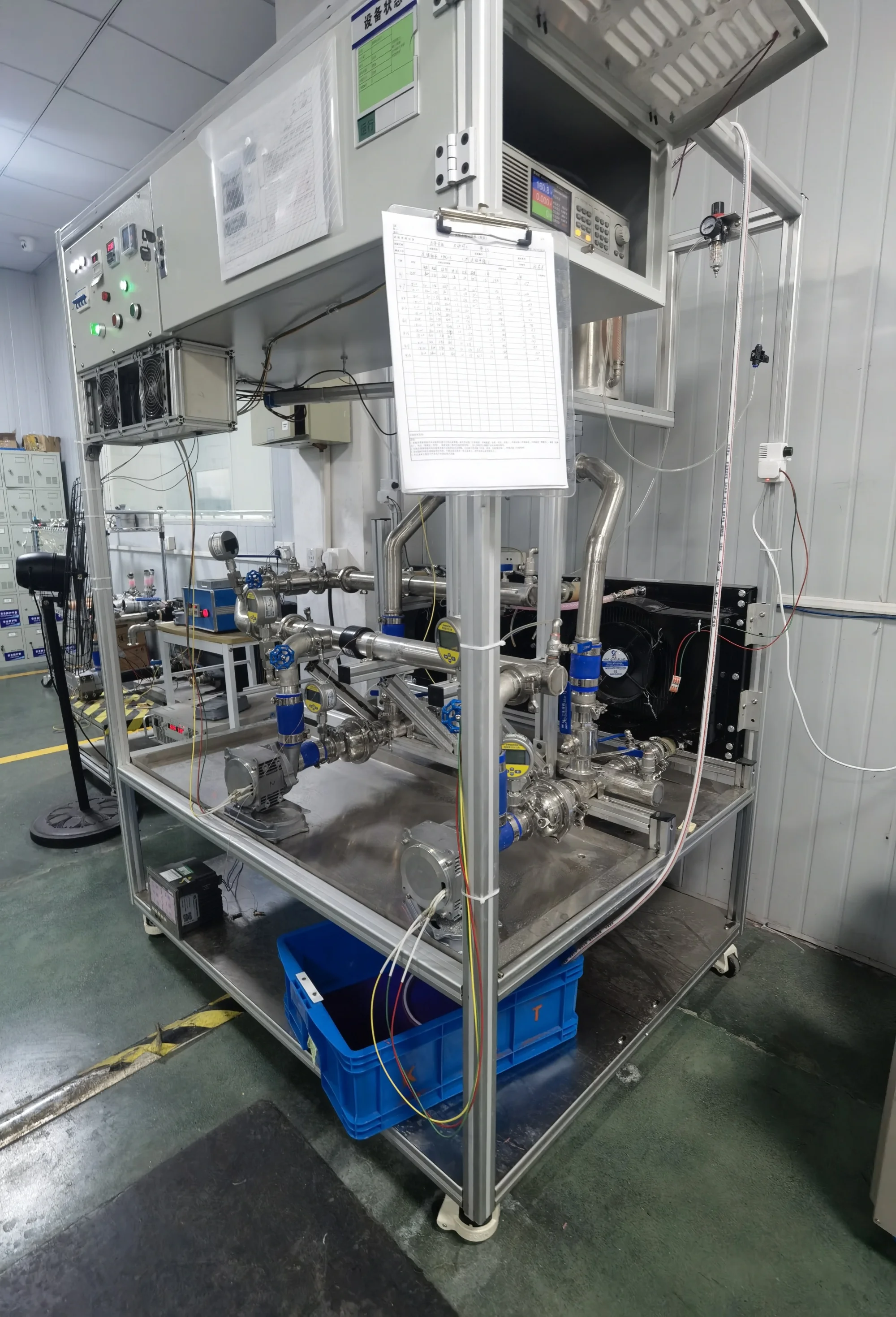

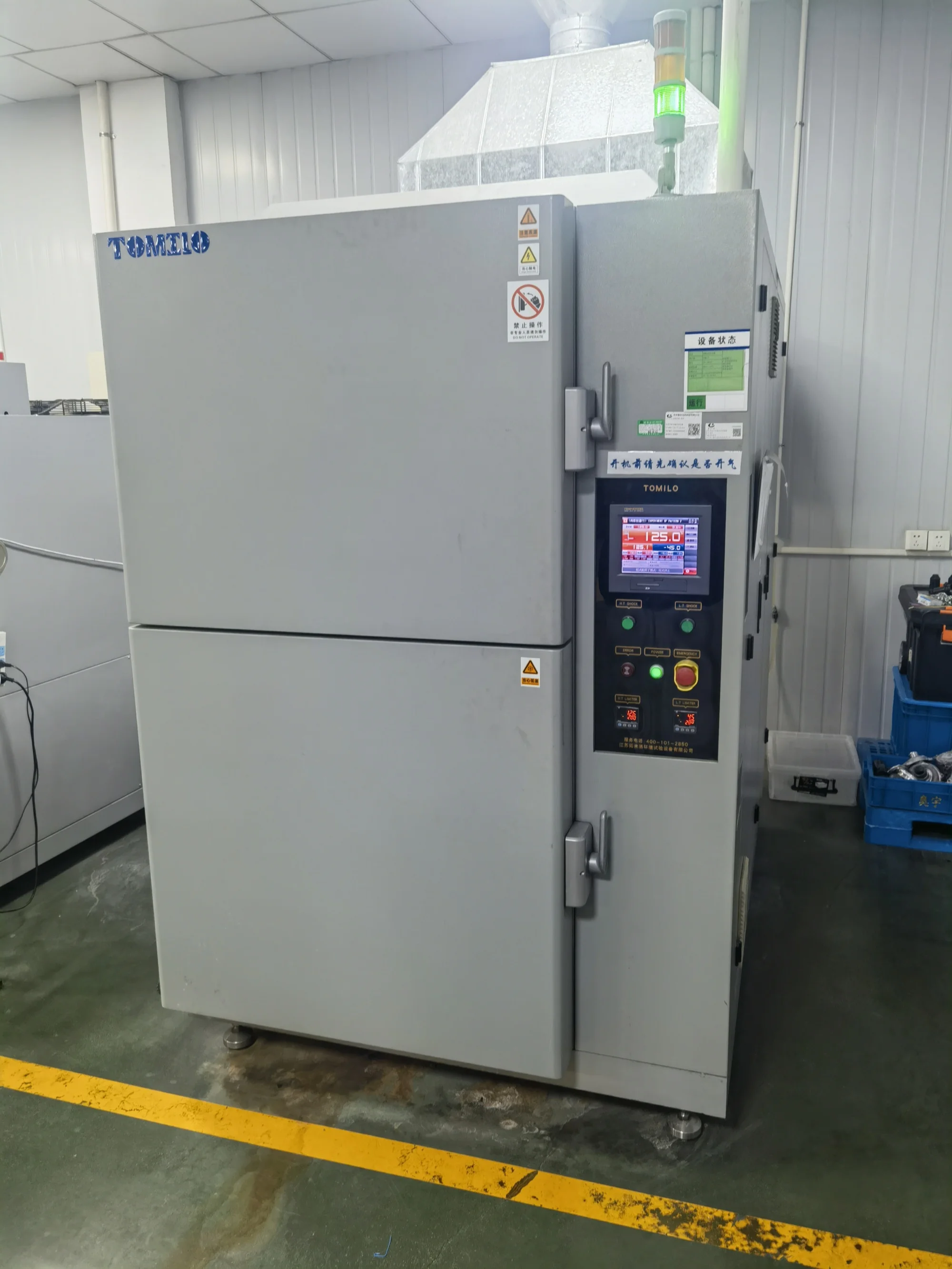

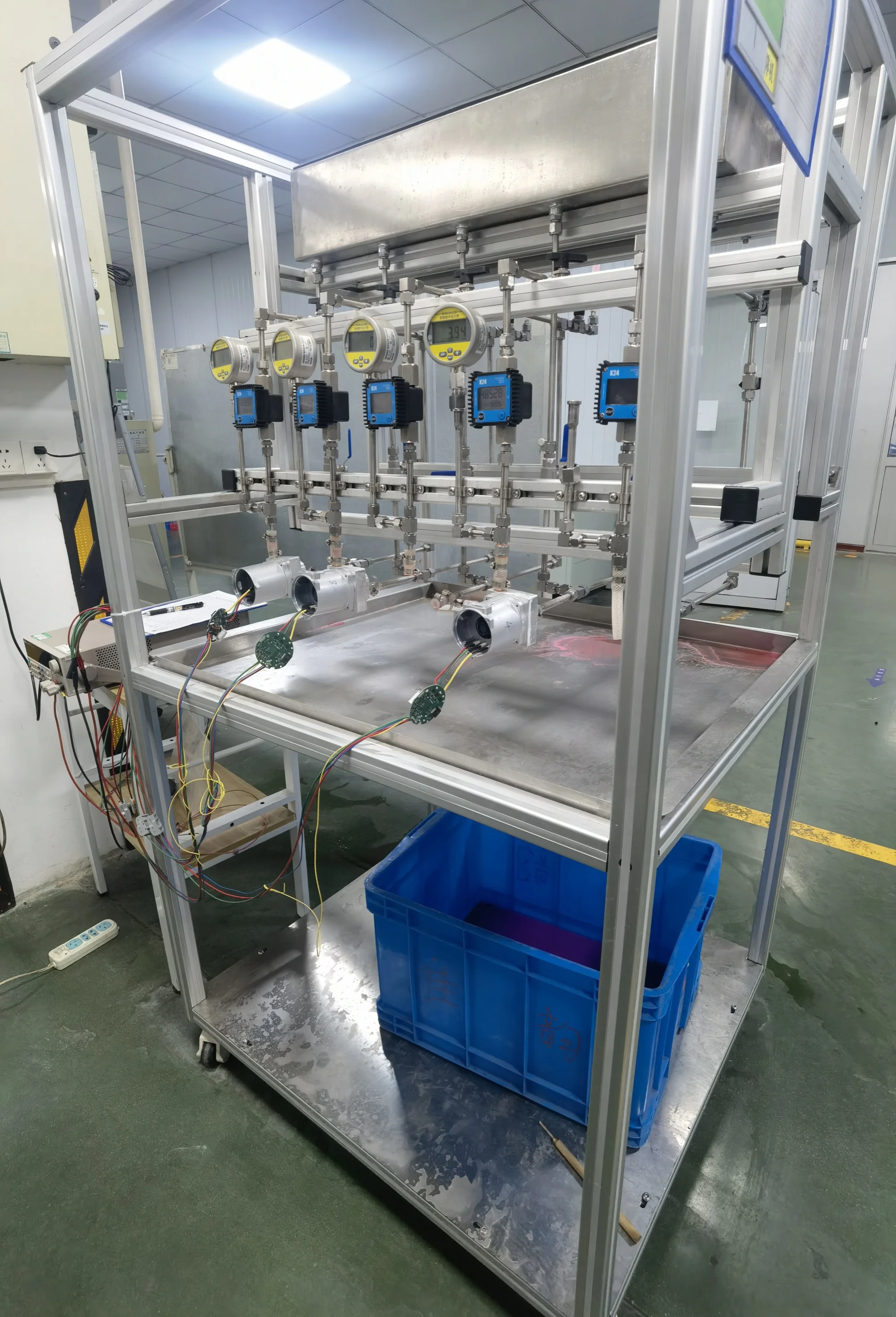

1000m² testing room, UL certified lab and R&D deparment with 175 sets testing machines for pump design and development verification,durability testing,aging testing,performance testing.
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

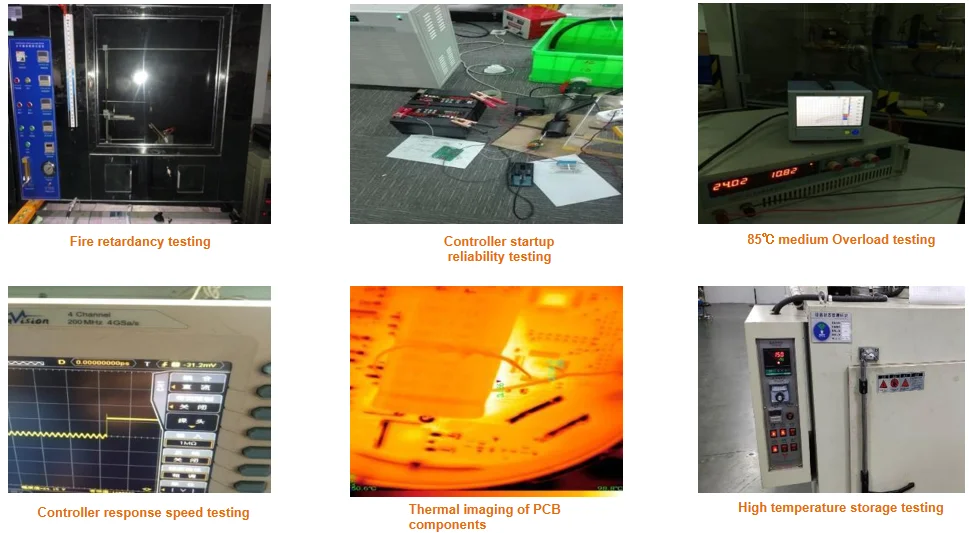

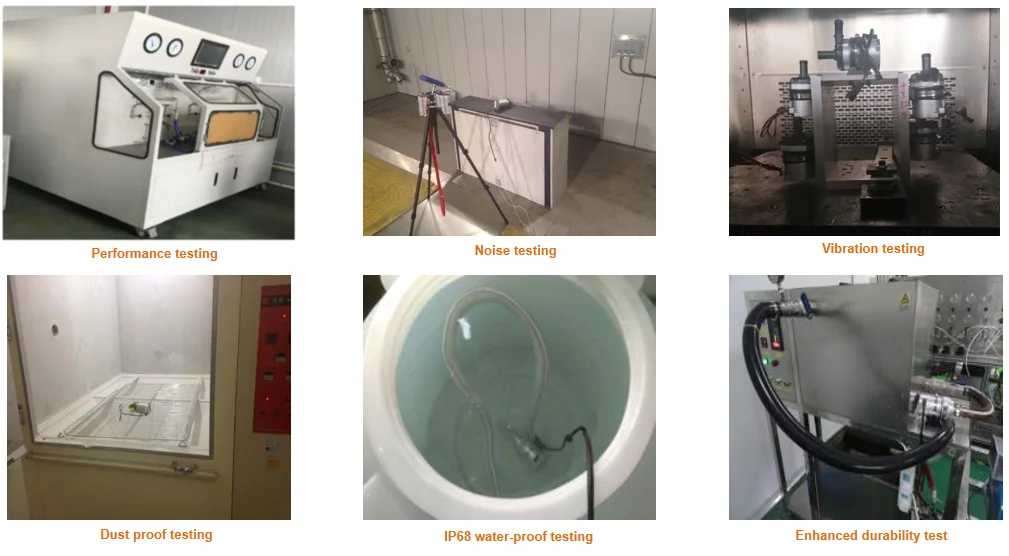

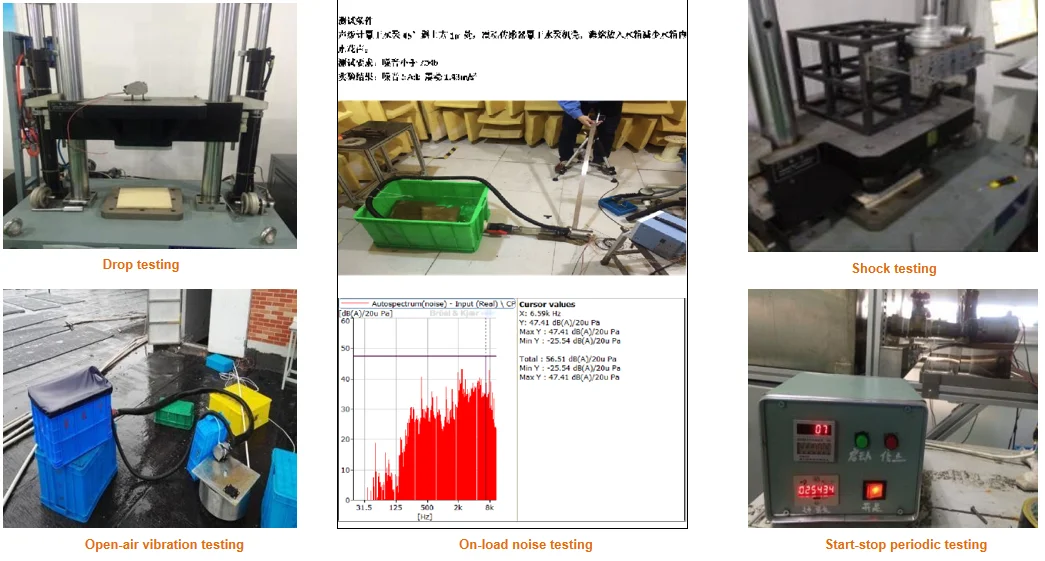

Verify capabilities and equipments
Over 50 typical testings performed according to automotive standards
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty

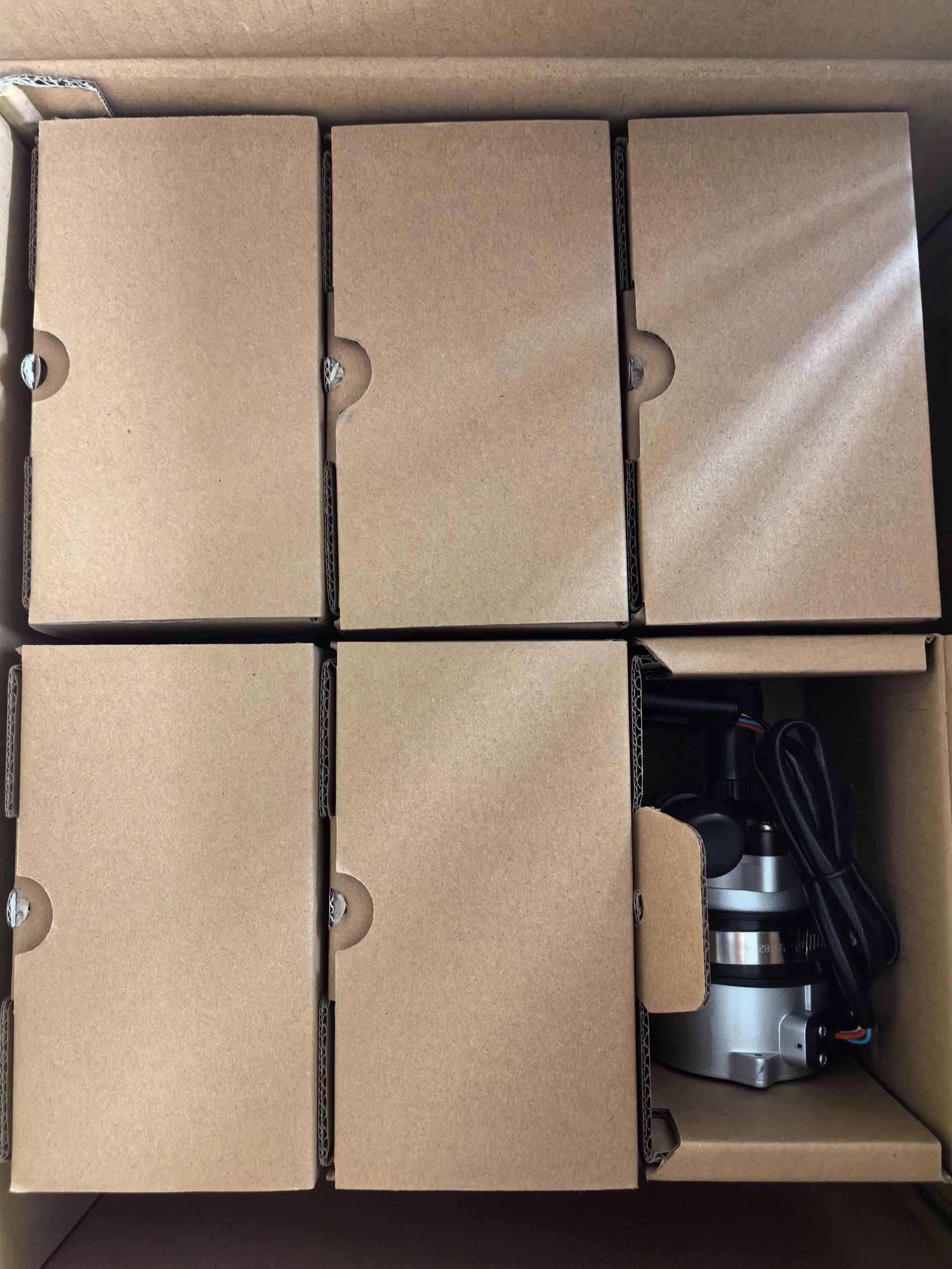

Product packaging
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
Packing info

Pump well packed in an individual box

one pump/box
6 boxes/carton
Box size:20*12*17cm
Carton size:38*43*20cm
FAQ
BLDC Water Pump 24VDC 250W 6000L/H Single Stage Centrifugal Pump for EV Battery Cooling with IP68 and 18 Months Warranty
1:Whats the Lead time?
Sample:in 5 days
Mass order:in 2-3weeks

2:Whats the MOQ?
1 set for all series products

3:Whats the pump Warranty?
18 month from the production date

4:How is the technical support?
We offer 1-1 service& technical support
